BARY® Heel Concealed Double Action Closer 60kg NS.CID

Name: BARY® Heel Concealed Double Action Closer 60kg NS.CID
Brand: Newstar Door Controls Ltd
SKU: NS.CID.001
Price: 95.72 GBP
Availability: InStock

£95.72 - £95.72

£114.86 £95.72

£95.72 - £95.72

£114.86 £95.72

SKU NS.CID.001

Availability:

15 in stock, ready to be shipped

Quantity

Description

Additional information

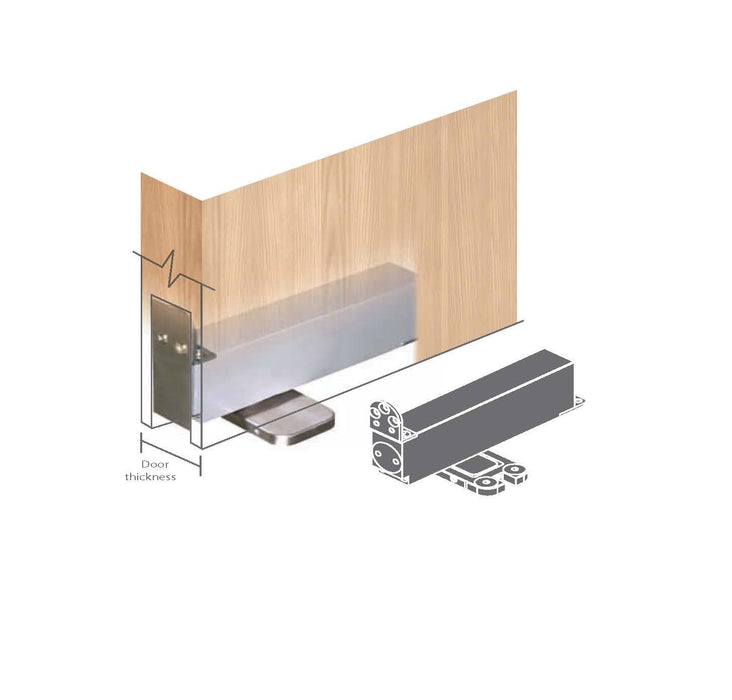

BARY^® Heel Concealed Double Action Closer

Code: NS.CID001

Variable Closing Force Standard Doors	?950mm
Suitable Door Thickness	?40mm
Body Dimension (Length x Wide x Projection)	181 x 56 x 32 (mm)
Spring Strength	60kg
Angle of Opening	150°
Closing Speed Adjustable	10°
Braking Speed Adjustable	0°
Non-handed	Yes
With Cover	Yes
Mechanical Guarantee	5 Years

Product Information

Quick and easy installation with smooth movement
Smooth movement
Easy installation with base seat adjustable backward and forward, left and right and alignment adjustment
A double action closer with no need to cut out the concrete floor
Non hold open as standard - hold open to order
No additional cost for top and bottom strap (included)
Breaking speed / Closing speeding adjustable
Non hold open as standard - Hold open available

A heavier spring strength version is available for 100kg door weight -BARY^® Heel Concealed Double Action Closer 100kg

Fire Rating: 60 minutes (Intumescent required)BARY^® NS.CID Intumescent Pack

Deceleration of Performance: 021CPR2013-07-03

Finish: SSS

Finish: Satin Stainless Steel
