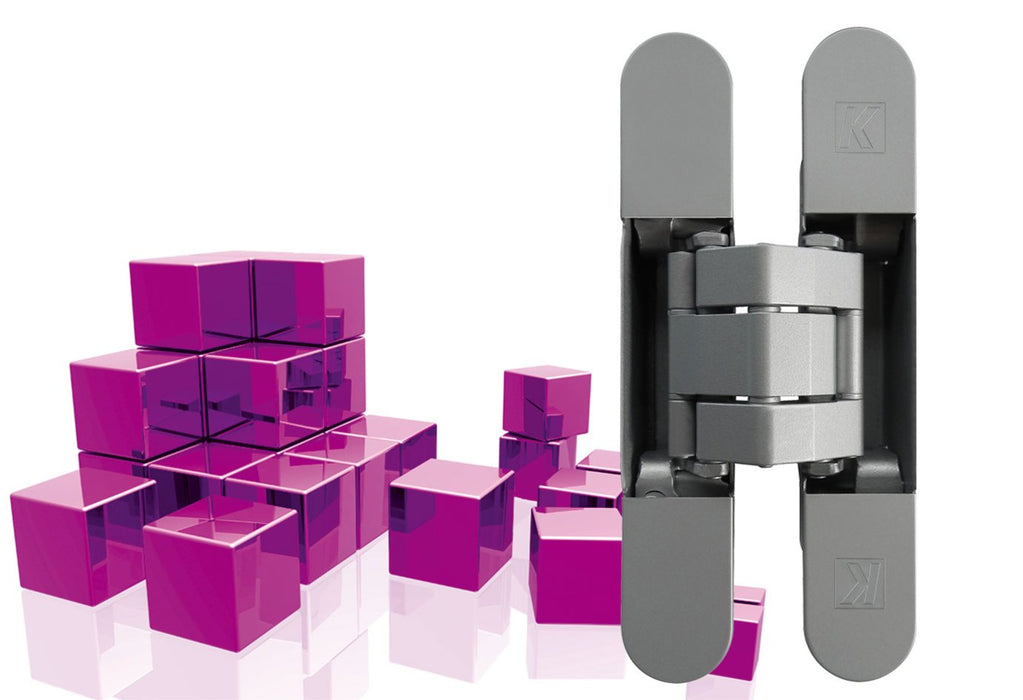

Krona Koblenz Atomika Karakter K8120

Krona Koblenz Atomika Karakter K8120

Sold : each

Finish : Satin Chrome

Availability

3-6 weeks from date of order

Product Information

Usage: Commercial and residential doorsets

Weight Rating

120kg - 3 Hinges

120kg - 2 Hinges

Material

Steel

Minimum Door Thickness

36 mm

Additional Information

A concealed hinge made of highly resistant steel for flush doors with wooden, steel and aluminium frames. Load capapcity up to 120kg, 180 opening angle with the minimum door thickness of 36mm. Wear-resistant bushings, lubrications/maintenance not required.

Three-dimensionally adjustable, all adjustments are independent, assisted and self supporting.

Adjustments: horizontal +3,0/-2,0mm, vertical =+/-3,0mm, Planar +/- 1,0mm

Cover caps are supplied with this product
