Krona Koblenz Kubi7 Kinox Hybrid Adjustable Concealed Multiaxial Hinges K7316

Clear
SKU: K.7316 Categories: ,

Description

Krona Koblenz Kubi7 Kinox Hybrid Adjustable Concealed Multiaxial Hinges K7316

Sold : each

Availability

3-6 weeks from date of order

Product Information

Usage: Commercial and residential doorsets

Weight Rating

140kg – 3 Hinges

120kg – 2 Hinges

Material

Steel INOX AISI 316

Minimum Door Thickness

40mm

Additional Information

A concealed hinge for flush doors made of steel INOX AISI 316 for wooden, steel and aluminium frames. Load capacity up to 120 kg with 2 hinges, 140 kg with three ones, 180° opening angle with the minimum door thickness of 40mm. Wear-resistant bushings, lubrication/maintenance not required, reversible for right- and left-hand doors RH/LH.

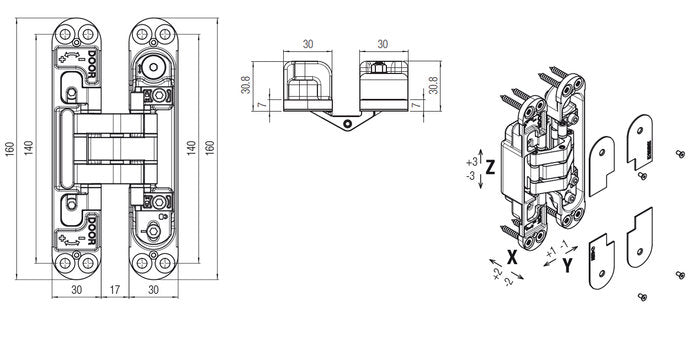

 All adjustments are indipendent, vertical and horizontal ones are tool-aided and self-loading. 3D-adjustable: horizontal + /-2,0 mm, vertical +/- 3,0 mm, depth +/- 1,0 mm. Finishes..





Additional information

Brand

Door Weight

,

Finish

Style
